Yaesu FTM-300D: installation in Mazda 2, 28th December 2021.

I have just completed installing a Yaesu FTM-300D, dual band VHF and UHF radio in my Mazda 2. The radio provides FM and C4FM on the two metre and 70 centimeter amateur bands. It was quite a task to mount the radio in an acceptable fashion in such a small car with interior plastics very close to the metal body of the car. I would like to thank Chris, VK3AWG/VK3IK for providing the inspiration for my choice of the Ram Mount to support the control head. Chris has an excellent Youtube video of his installation in a Mazda 3 (a slightly bigger car than the Mazda 2). An exchange of emails and I had more information and I set about getting the parts.

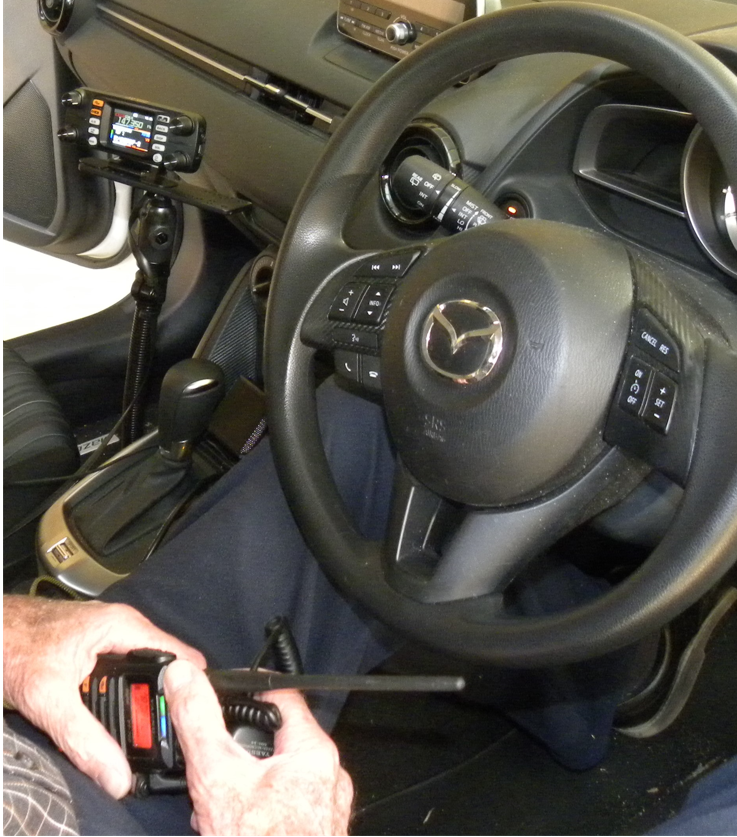

A virus (not Covid 19) slowed me down a bit through late October into November but I decided not to procrastinate any longer! Finding a place for the radio body was the biggest challenge. Mounting on the side of the centre console took too much space and intruded into the passenger area. I considered underneath the rear parcel shelf. That was unsatisfactory because it moves up and down as the hatch is opened and closed. I looked at mounting it under the dash on the driver’s side of the cabin but it would be bumped by my knees because of my long legs. The photo below shows the head mounted on the Ram Mount (I chose the 18 inches long stalk). The US still uses imperial measurements: amazing for the land of the free! The head of the FTM-300D is small and it is mounted off centre as I need to mount a small speaker there for either the A or B band. The other speaker is mounted in a small centre space in the dash and is just visible in front of the gear shift lever.

FTM-300D on Ram Mount

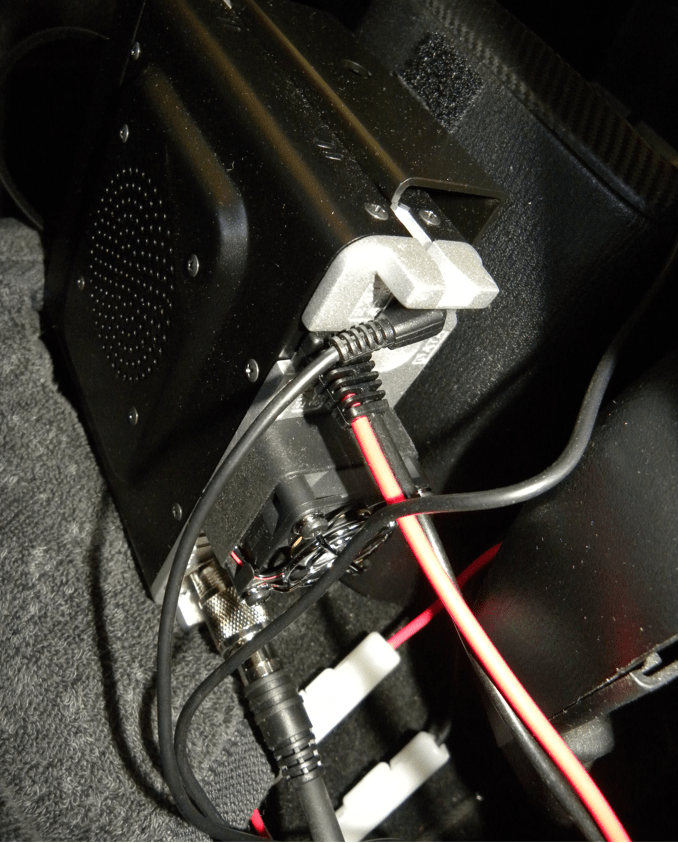

The photo two below shows the radio mounted on the rear of the centre console supported on the hump and the well-engineered mounting bracket is held in place with industrial grade velcro. There is a slight curve in the plastic and I will add some additional velcro to provide a bit more support. Power, speaker and coaxial cables are just visible in this photo. While installing the radio I listened to the WIA broadcast on my FT70D on VK5RDF (two metre repeater) and later on the FTM-300D.

FTM-3000D mounted on end of centre console – both photos were taken by my xyl,Jenny

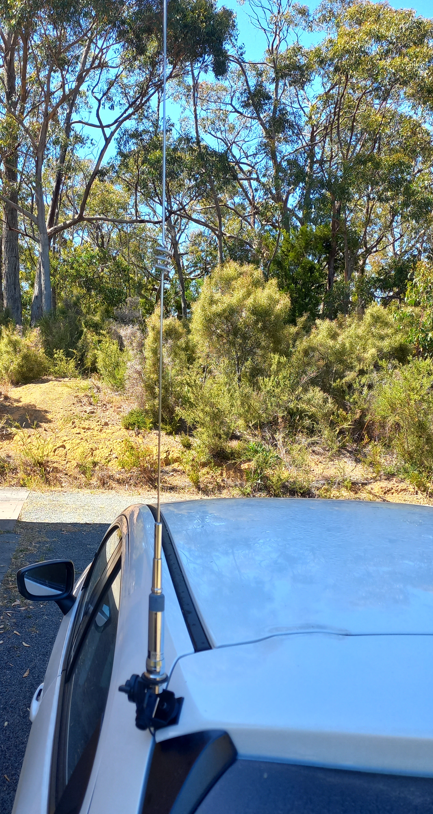

The photo below shows the Brainer antenna mounted on a three-way Diamond Mount. I purchased the Brainer antenna from Dick Smith Electronics (when Dick, VK2DIK, owned the business) probably in the late 1980s or 1990s. I used it on a Suzuki Grand Vitara for many years. I will probably replace it with a Diamond black coloured smaller more stealthy antenna.

Brainer 2m & 70cm antenna on three way Diamond Mount
Dick Smith Advertisement from Amateur Radio Magazine, September 1993. My antenna is the ST-7500 which is a metre long and quite effective.
